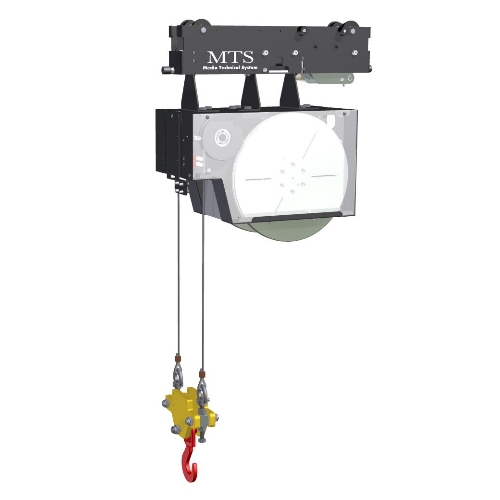

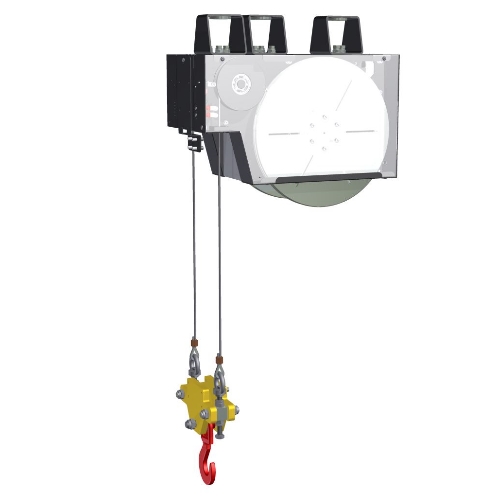

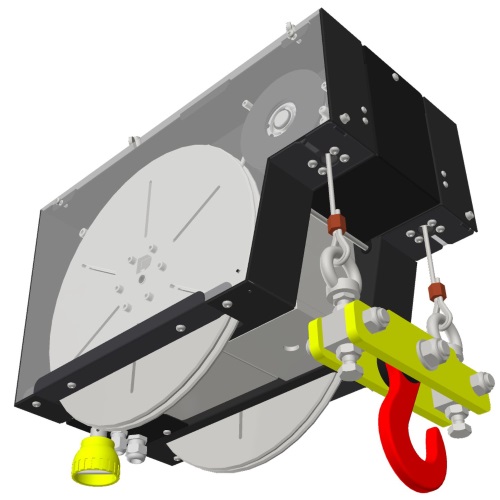

Scenery hoist SPZ 150 B

Item No. 340150

The powerful scenery hoist with up to 150 kg payload

The light and powerful scenery hoist with bobbin winding is suitable for lifting and lowering backdrops and decoration elements of all kinds in the studio, on stage or in event applications. The maximum payload of the SPZ 150 B is 150 kg. It has a statically and dynamically self-locking transmission which minimizes the maintenance effort.

The MTS scenery-hoists can be fixed to an existing ceiling construction. Alternatively, it can also be integrated into the studio or stage ceiling using the MTS rail systems and the accompanying trolley.

The MTS devices fulfill all relevant safety regulations such as the stricktest german safety norms DGUV regulation 17 (formerly BGV C1, formerly VBG 70) as well as DIN 56950-2 (formerly DIN 15560)

Produkt Highlights
Technische Daten
Zubehör

The highlights at a glance:
  • strong hook
  • ideal for all kind of studio, stage or the event application
  • statically and dynamically self-locking gearbox
  • two steel ropes as support means
  • slack rope / rope break detection on each cable
  • operational and emergency limit switch (top and bottom)
  • carrying capacity: up to 150 kg
Technical specifications:
  • Abstract:
  • vHub: <>.
  • Engine:
  • Motor protection:
  • Dead weight: <> 57 kg
  • Max. Payload: 150 kg
  • static and dynamic self-locking gearbox
  • Slack rope break detection for each suspension system
  • Overload protection
  • Operating limit switch up / down
  • Emergency up / down switch
  • Load hook
  • Dimensions (L * B * H): 490 * 261 * 480 mm
  • Reserve technical changes.

Technical drawing:

 DOWNLOAD Betriebsanleitungen, Servicehefte und Programmierungsdateien

Accessories:

media-techincal-system-produktfoto-fcp900-wandpanel-studiosteuerungen-teilautomatik

Art.Nr. 350.900 FCP 900

media-techincal-system-tablet-ir-tc-4

Art.Nr. 350.026 RFS-TC 4
