MTS PREMIUM STUDIO LIGHTING SUSPENSION
ABOUT MTS DROPARMS
MTS Droparms are the go to solution for safely and easily lowering lighting fixtures, audio equipment, and other devices in TV studios or on stage. Designed for cost-efficient and reliable operation, they offer maximum flexibility and safety across a range of applications.
Available in various configurations, including fixed droparms, adjustable (variable) droparms, and custom designs such as Trio Droparms and TV-holder models, there’s a solution for every setup.
Each droparm features a standard DIN TV spigot (28mm) at the top for mounting, and normally a DIN TV socket (29mm) at the bottom for easy attachment of equipment.
At MTS, we are dedicated to the highest standards of quality and safety. All of our products are built with premium components, rigorously tested, and fully comply with EN 17206 and DGUV V17 (BGV C1) safety regulations. We never compromise—your safety is our standard.
OUR DIFFERENT HOIST PRODUCTS:
1) FIXED DROPARMS – DAF.
- available in multiple length options
- top DIN TV spigot (28mm)
- bottom DIN TV socket (29mm)
2) VARIABLE DROPARMS – DAV.
- adjustable length
- available in multiple length options
- top DIN TV spigot (28mm)
- bottom DIN TV socket (29mm)
4) OTHER DROPARMS AND ATTACHMENST.
- multiple other options of special adapters are available
- also custom sulutions are possible.

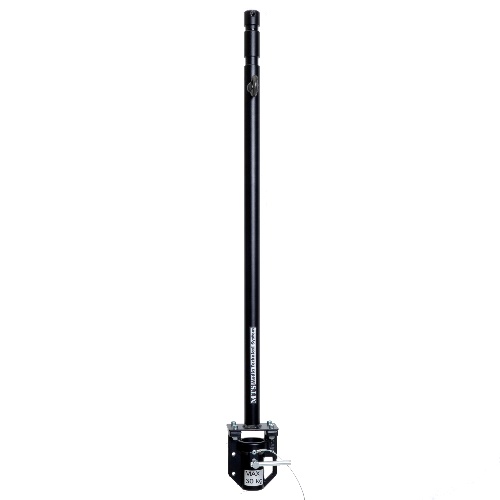

1) FIX DROPARMS (DAF)
Fixed Droparms offer the simplest and most reliable solution for lowering lighting fixtures, audio devices, and other equipment in studios and stage environments.
With a load capacity of up to 30 kg, they connect via a 28 mm DIN TV socket at the top and feature a 29 mm DIN TV sleeve with an integrated eyelet at the bottom for attaching safety ropes.
Each droparm is robustly manufactured, powder-coated in black, and built for long-lasting performance. Standard lengths are typically in stock, while custom lengths are available upon request.
All droparms comply with the latest safety standards, including:
DGUV Regulation 17 (formerly BGV C1 / VBG 70)
EN 17206 (formerly DIN 56950-2 / DIN 15560)
- Payload: 30kg
- attachment:
- Top: DIN TV spigot (28mm)
- Bottom: DIN TV socket (29mm)
- additional safety pin (stainless steel)
- rotational brake
- eylet for safety cable
- fully compliant with the strictest safety regulations – designed according German safety standards
- Safety standards: EN17206, DGUV Vorschrift 17 (former BGV C1/ VBG 70) and DIN 56950-2 (former DIN 15560)
Available in multiple length options:
- DAF 25 – 250mm
- DAF 50 – 500mm
- DAF 75 – 750mm
- DAV 100 – 1000mm
- DAV 130 – 1300mm
2) VARIABLE DROPARMS (DAV)
Variable Droparms offer the same reliability as fixed models, with the added flexibility of adjustable length. They can be adjusted in 50 mm increments using a captive locking pin and locking screw, making them ideal for setups that require variable hanging positions.
With a load capacity of up to 30 kg, they connect via a 28 mm DIN TV socket at the top and feature a 29 mm DIN TV sleeve with integrated eyelet at the bottom for safety rope attachment.
Standard models include DAV 50, DAV 70, and DAV 100, with custom lengths available upon request.
All droparms are built to the highest standards and fully comply with:
DGUV Regulation 17 (formerly BGV C1 / VBG 70)
EN 17206 (formerly DIN 56950-2 / DIN 15560)
- variable length in 50mm steps
- Payload: 30kg
- attachment:
- Top: DIN TV spigot (28mm)
- Bottom: DIN TV socket (29mm)
- additional safety pin (stainless steel)
- rotational brake
- eylet for safety cable
- fully compliant with the strictest safety regulations – designed according German safety standards
- Safety standards: EN17206, DGUV Vorschrift 17 (former BGV C1/ VBG 70) and DIN 56950-2 (former DIN 15560)
Available in multiple length options:
variable length in 50mm steps
- DAV 40 – 400-500 mm
- DAV 50 – 500-700mm*
- DAV 70 – 700-1100mm*
- DAV 80 – 800-1300 mm
- DAV 100 – 1000-1700mm*
- DAV 110 – 1100-1900mm
- DAV 115 – 1150-2000mm
- DAV 120 – 1200-2100mm
- DAV 130 – 1300-2300mm
- DAV 150 – 1500-2700mm
- DAV 170 – 1700-3100mm
- DAV 180 – 1800-3300mm
* (standard versions – usually on stock)

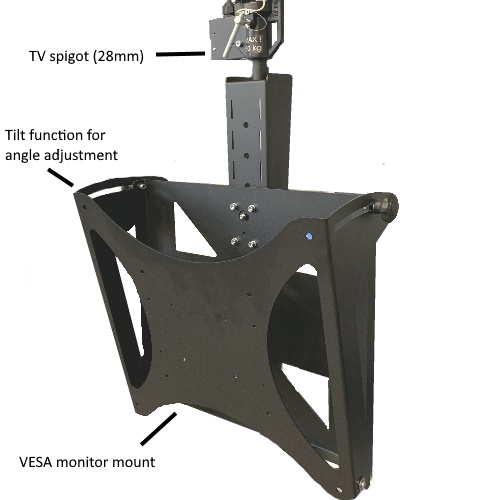

3) TV DROPARM
The MTS TV Droparm is the ideal solution for suspending monitors and displays with standard VESA mounting patterns.
Designed for professional studio environments, it features a tilt function for setting the optimal viewing angle. The droparm mounts securely via a standard 28 mm TV spigot, allowing easy integration into existing rigging systems.
Whether for broadcast, production, or presentation setups, the TV Droparm is the reliable and elegant way to attach a monitor to the studio ceiling with safety and precision.
- Payload: 30kg
- top attachment: DIN TV spigot (28mm)
- tilt function for optimal viewing angle.
- different VESA mounts (300×300, 400×400 ect)
- fully compliant with the strictest safety regulations – designed according German safety standards
- Safety standards: EN17206, DGUV Vorschrift 17 (former BGV C1/ VBG 70) and DIN 56950-2 (former DIN 15560)

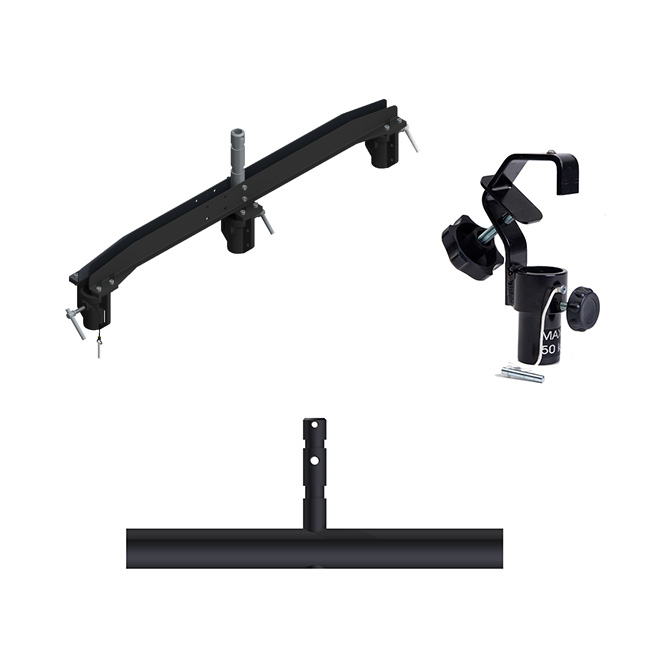

4) Other droparms and Attachments
MTS offers a wide range of special droparms, adapters and connectors to securely mount your equipment to the studio ceiling, tube profiles, or truss systems.
Below is a selection of available options—please note, this is not a complete list. If you have a specific requirement or a custom mounting challenge, don’t hesitate to contact us. We’re happy to develop a solution tailored to your needs.

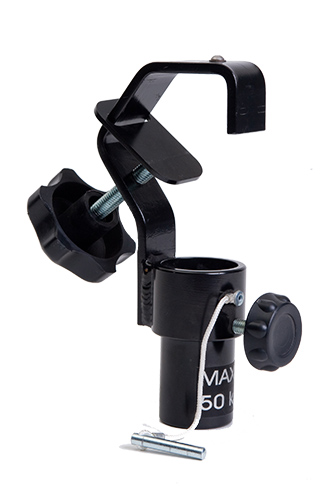

PIPE CLAMP – DIN TV SCKET.
If our want to attach a device to any tube profile or truss system (up to 60mm diameter), this clamp socket is the perfect adapter for you.
- max. Payload 50kg
- safety pin
- rotational break
PIPE CLAMP – M10.
If our want to attach a device to any tube profile or truss system (up to 60mm diameter), this clamp socket is the perfect adapter for you.
- max. Payload 50kg
- safety pin
- rotational break
TRIO ARM.
One TV spigot holds three TV sockets. This way you can attach multiple fixtures to a single device, e.g. a motorized telescope or pantograph.
- 1x DIN TV spigot (28mm)
- 3 x DIN TV socket (29mm)
- width: 860mm
MOVING LIGHT HOLDER.
This adapter has a DIN TV Spigot at the top and is ideal to attach any comon moving lights to a DIN TV Socket.
WHY CHOOSE MTS PRODUCTS?
MTS hoists provide safe, reliable, and easy-to-maintain solutions for studio and stage applications.
Key Benefits:
✔ Safety is our top-priority – Oversized steel wire ropes (safety factor 10) ensure durability, early damage detection, and resistance to lateral movement.
✔ Low-Maintenance Drives – Compact, quiet, and maintenance-free drives with near-zero failure rates. The motor/gear-units are statically and dinamically self-locking.
✔ Decentralized Control – Independent motor control prevents system-wide failures and simplifies maintenance.
✔ Fire-Safe Cables – Halogen-free, reducing toxic emissions and fire hazards.
✔ Easy Maintenance – All inspection points are visible, cutting service time by up to 50%.
✔ Future-Proof Compliance – Meets EN 17206 & DIN 56950-2, ensuring long-term EU regulation compliance.
✔ Reliable Service & Warranty – 3-year warranty, 10-year spare part availability, and global service support.
MTS Expertise:
✔ 25+ years in studio & stage lifting
✔ Premium components for safety & durability
✔ Manufactured to DGUV 17 & DIN 56950-2 standards
MTS delivers end-to-end solutions – from consultation to installation, ensuring top-tier safety, performance, and reliability.
