Adjustable droparms DAV 40-180
Standartlengths:
DAV 50 – Art.Nr. 302.050
DAV 70 – Art.Nr. 302.070
DAV 100- Art.Nr. 302.100

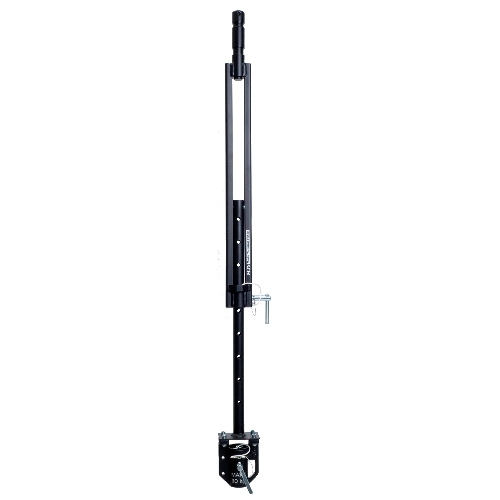

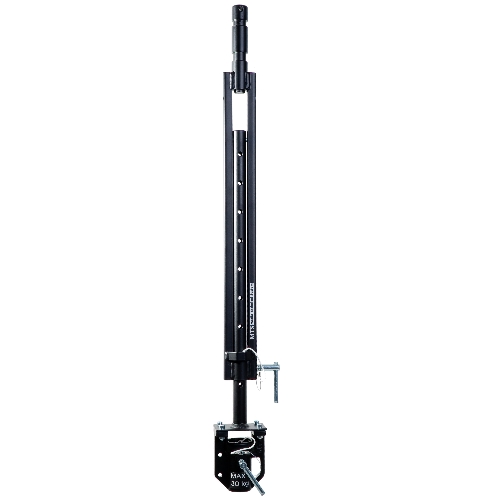

Droparms with variable Length-adjustment
Drop-arms with variable length adjustment are an ideal means for simple and flexible suspension of lighting, audio and video devices.

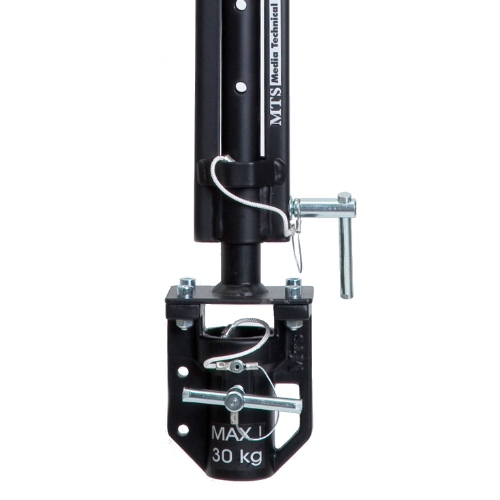

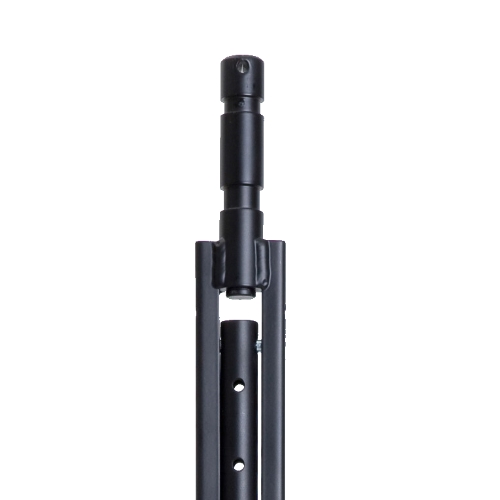

The load capacity of the varable drop arms is 30 kg. The upper attachemt is carried out by a 28 mm DIN TV spigot. To attach the luminairies, the droparms have an implemented 29mm DIN TV-sleeve with an eyelet for securing cables.
The length adjustment is performed place in steps of 50 mm with captive locking pin and a locking screw. The outer rail and the running tube are made of steel.
Customer-specific versions are possible on request.
All studio droparms from MTS – Media Technical System comply with the relevant safety rules The DGUV provision 17 (formerly BGV C1, previously VBG 70) and DIN 56950-2 (formerly DIN 15560)
The highlights at a glance:
- Standard lengths: DAV 50, DAV 70 and DAV 100
- Steps all 50mm
- Weight approx. 2.5-3.5kg depending on the version)
- Load capacity max. 30 kg
- safety pin and fixing bolt with loss security
- up to 3,3 m drop
- DIN TV spigot (28 mm) for upper attachment
- DGUV regulation 17 (formerly BGV C1, former VBG 70) as well as DIN 56950-2 (formerly DIN 15560)
Versions:
DAV 40 – Item No. 302.040
DAV 50 – Item No. 302.050 (Standard Länge)
DAV 70 – Item No. 302.070 (Standard Länge)
DAV 80 – Item No. 302.080
DAV 100- Item No. 302.100 (Standard Länge)
DAV 110 – Item No. 302.110
DAV 120 – Item No. 302.120
DAV 130 – Item No. 302.130
DAV 150 – Item No. 302.150
DAV 170 – Item No. 302.170
DAV 180 – Item No. 302.180
Standard versions are usually on stock. Others might have a longer delivery time.
Technical specifications:
Standartlengths: DAV 50, DAV 70 und DAV 100.
Further lengths on request.

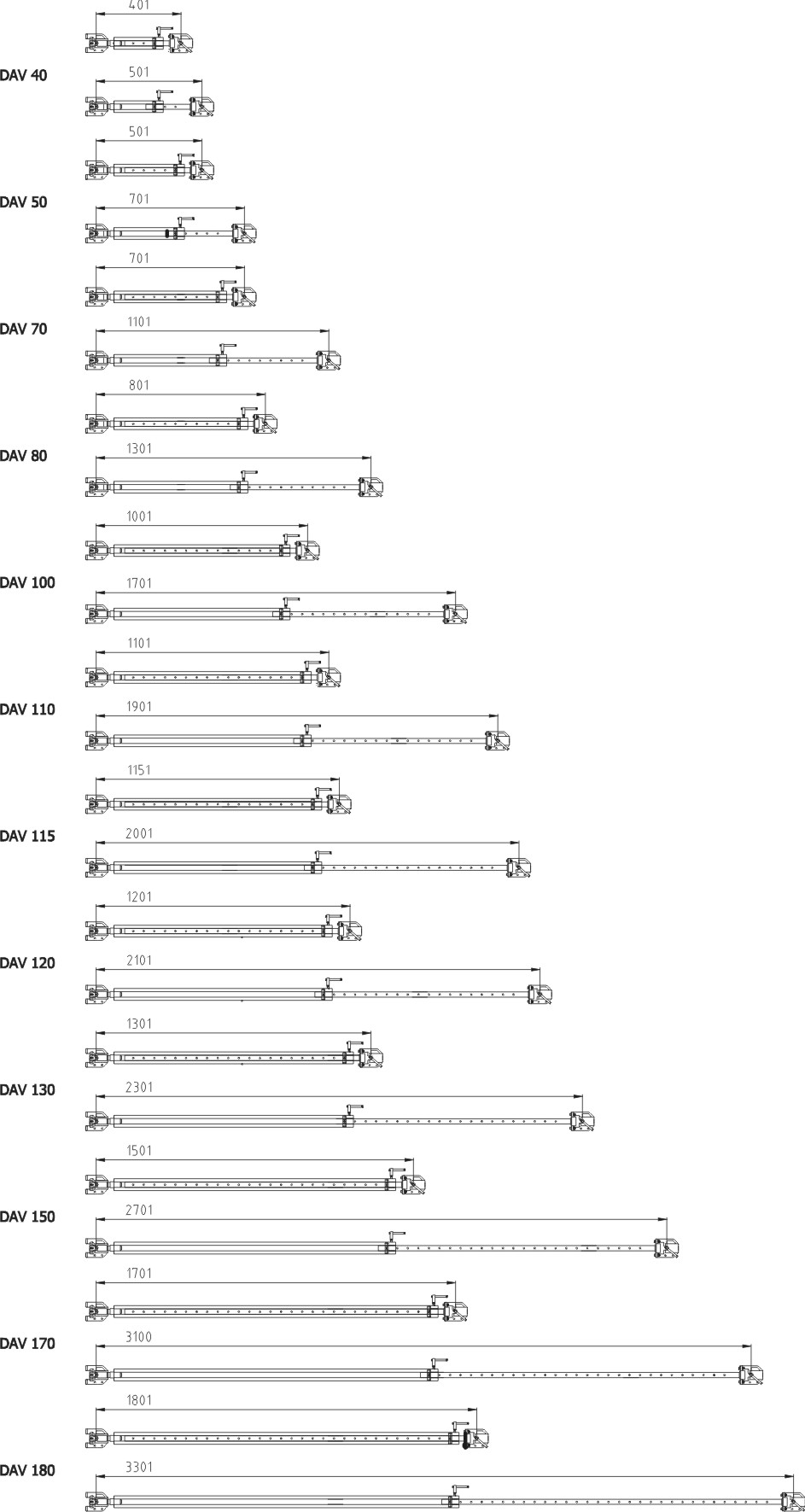

Technical drawing:
