Manually Operated Telescopes TLP 20 – 60
TLP 20 – Art. 317.020
TLP 40 – Art. 317.040
TLP 60 – Art. 317.060

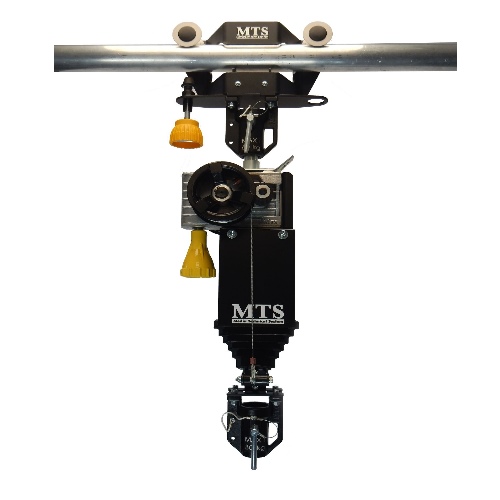

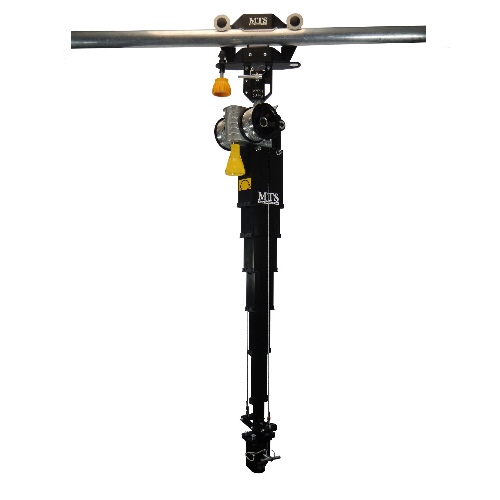

A pole-operated manual telescope
Pole operated telescopes are used to precisely position lighting, audio and video equipment in studios with a ceiling height of up to 6m.
The MTS telescopes are available in version between 2000mm and 6000mm.
The load capacity of the TLP telescopes is up to 30 kg.
Customized adaptations of the lifting devices can be made at any time upon request.
The telescopes from MTS – Media Technical System fulfill the relevant safety regulations DGUV regulation 17 (formerly BGV C1, formerly VBG 70) as well as DIN 56950-2 (formerly DIN 15560).
The Highlights at a glance:
- Payload: up to 30 kg
- up to 6m drop
- toolless maintainance; all maintainance points can be directly viewed
- slim and compact design
- power and data supply on request
- less than +/- 2° radial deviation
- fully compliant with the strictest safety regulations DIN 56950-2 and DGUV V17
Technical Data:
- TLP 20-60 with up to 6m extension
- Supporting cables: two cables, d= 2mm
- Pressure rollers to keep the cables in the lead
- Tubes: DIN AIMgSi 0,5/F22, radial deviation < +/- 2°, lubricant-free
- Spiral cable: upon request (direct, dimmed, DMX, Ethernet, video, audio, etc.)
- Upper atttachment: DIN TV spigot, d = 28 mm

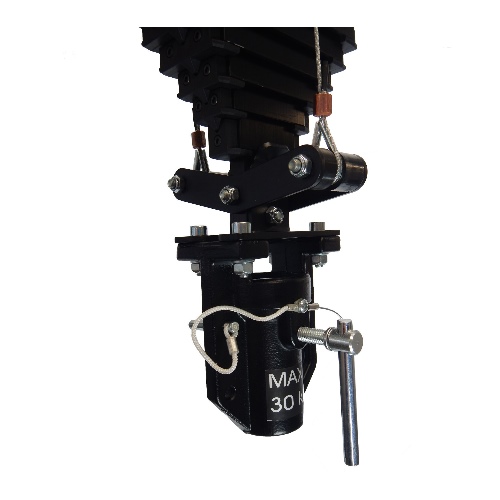

- Load attachment: DIN TV socket d = 29 mm
- Operated via opertaing pole SBV or motorized pole MSB 400
- Safety standards: DGUV Vorschrift 17 (former BGV C1/ VBG 70) and DIN 56950-2 (former DIN 15560)
